RP1300
Head and block resurfacer
Scope:

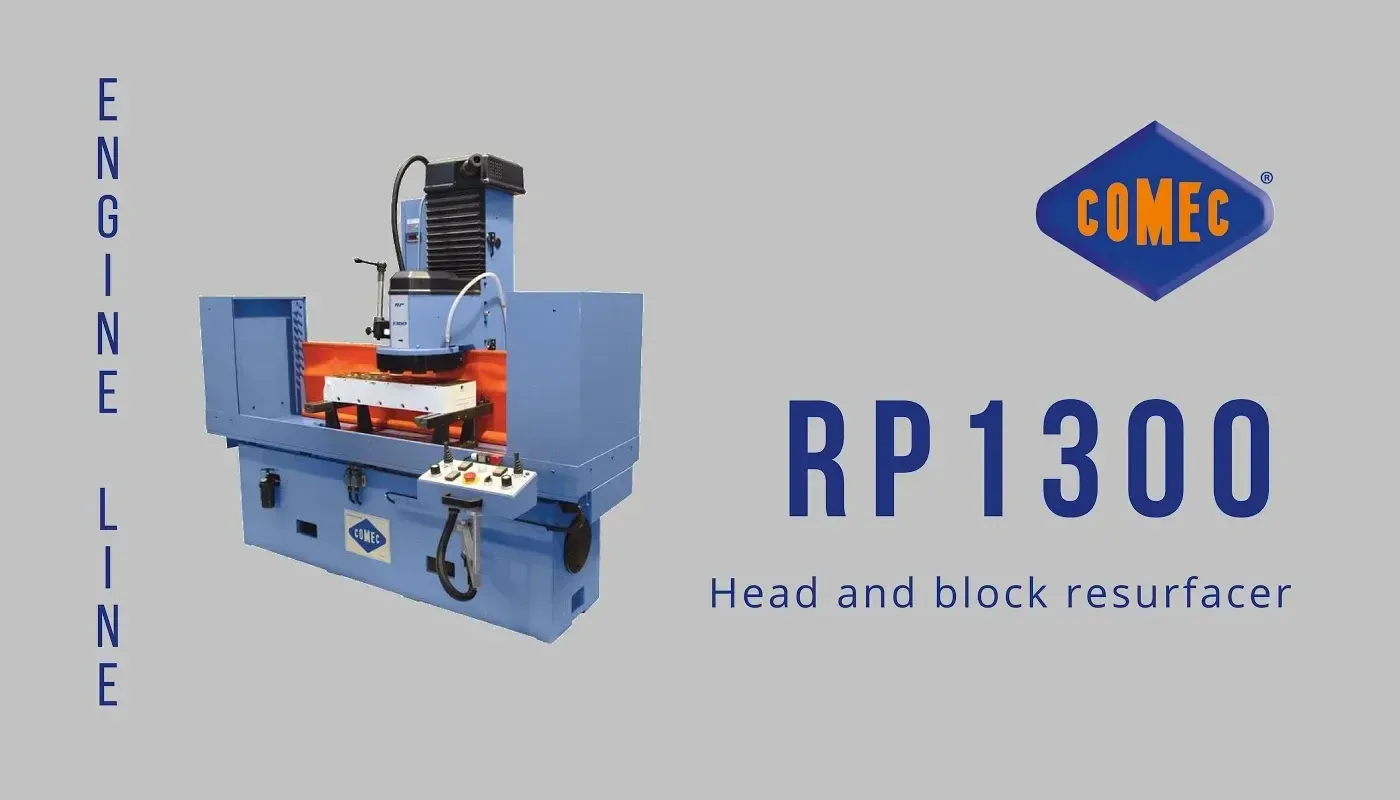

Comec RP1300 - Head and block resurfacer

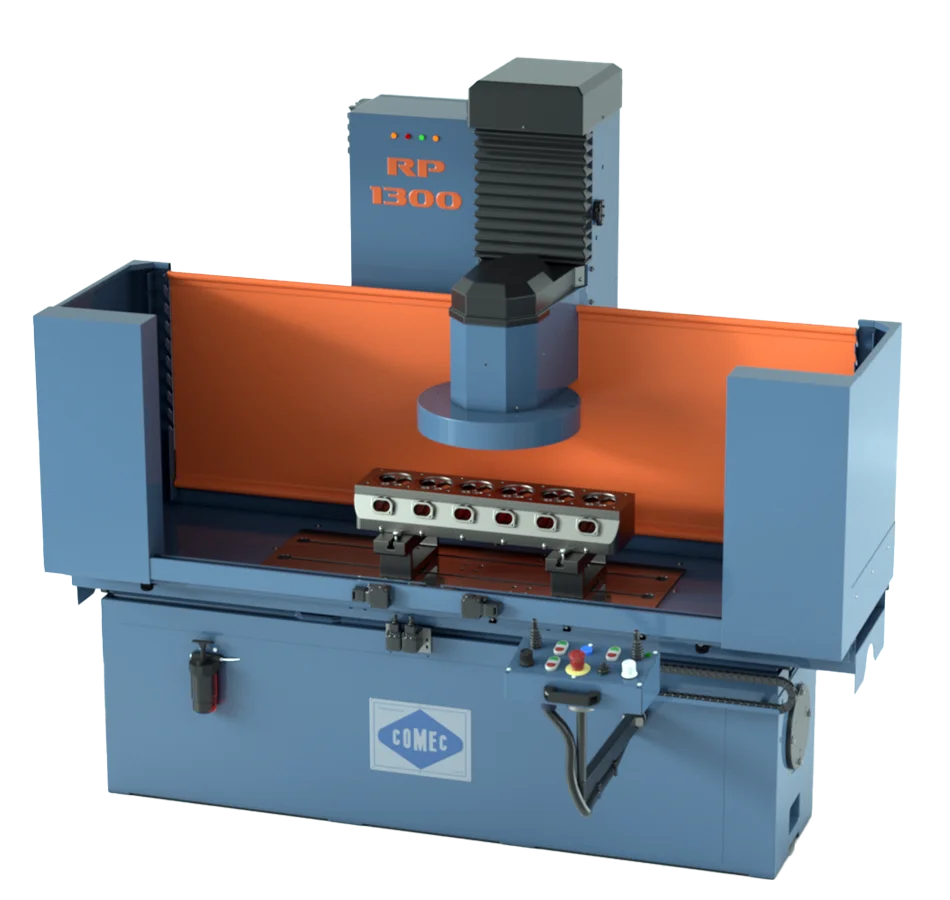

The RP1300 is a resurfacing machine designed for cylinder heads and blocks of cars and trucks but also for all those flat surfaces that require an extremely precised side contact.

This model combines tested solutions, such as  the flat and V-shaped lubricated slides on the base (which guarantee an excellent run fluidity), with other more innovative features, like the table feed through a recirculating-ball screw with a wide range of regulation or an inverter for the spindle speed regulation.  Moreover, RP1300 has an efficient cooling system consisting in a tank on wheels and a grinding wheel dresser. For a convenient and safe use of the machine, all control commands are located on a swing arm control panel adaptable to every operator;

The standard version includes, a segmented grinding wheel for cast iron or aluminium and pre-chamber cylinder head resurfacing and brazed tool for aluminium machining.

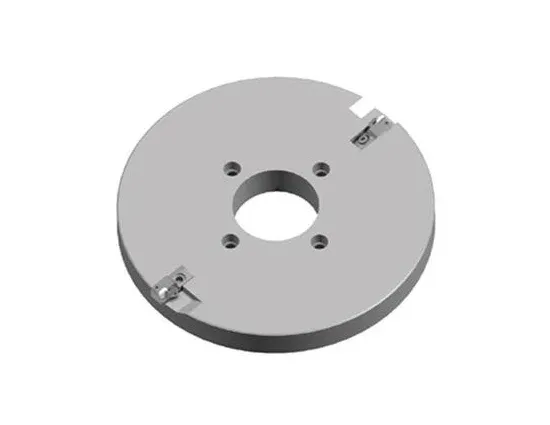

Available as optional a CBN-PCD toolholder plate for the reconditioning at high speed of cast iron and aliminium heads

Consult the brochure or contact us for more information.

Fill in all fields to request information on this product.


Standard equipment
  • Adjustable table speed with recirculating-ball screw
  • Segmented grinding wheel complete with abrasive sectors for cast iron (10 pcs.)
  • Splash and safety guard
  • Fast motorized head feed
  • Cooling system complete with pump
  • Settling tank
  • Abrasive sector dresser
  • RTV099 Starwheel dresser
  • UT0003 Head resurfacing tool
  • PV0160 Pair of parallel supports
  • PV0021 Large clamps (2 pcs.)
  • PV0022 Small clamps (4 pcs.)
  • Lubricant for slides
  • Emulsifiable liquid
  • Wrench set
  • Instruction manual
Specifications
Table travel
1400 mm
Maximum working lenght
1225 mm
Maximum working width
355 mm (405 mm Optional)
Maximum working height
740 mm
Useful table surface
920x230 mm
Grinding wheel diameter
355 mm (405 mm Optional)
Spindle rotation speed
300÷1500 RPM
Adjustable table feed speed
0÷1500 mm/min
Spindle motor
4.0 kW
Table motoreducter
0.75 kW
Rapid feed motor
0.5 kW
Cooling pump motor
0.25 kW
Dimensions (LxLxH)
2180x1280x2000 mm
Weight
1410 kg
Accessories and spare parts
PVA015
Adjustable universal fixture wit parallels
PV0007
PV0007 Pair of parallel supports  H=49mm
PV0160
PV0160 Pair of parallel supports
PL000A
Motor driven rotary table
UT0018
Aluminum with Pre-chamber insert tool holder
UT0023
3/8” CBN/PCD insert tool holder
UT0017
Insert tool holder with UT0014
UT0014
Replacement insert for UT0017 (10 pcs)
CBN insert Comec
UT1355
1/2” CBN Insert for cast iron
UT1356
1/2” PCD Insert for aluminium
UT0003
Head resurfacing tool
UT1330
1/2" Insert tool holder for UT1355 (CBN), UT1356 (PCD)

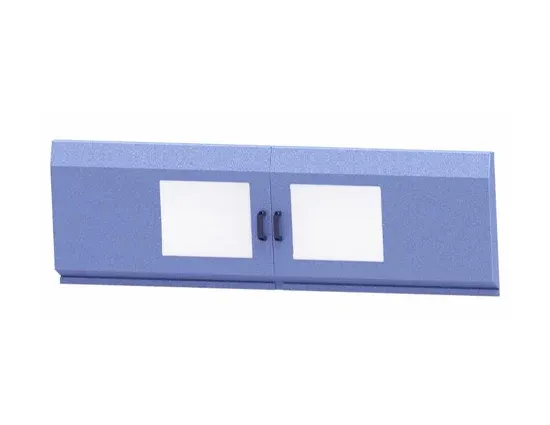

PSC130
Splash and safety guard with sliding doors
UT1320
3/8” CBN/PCD insert tool holder
