RP1400
CNC Head and block resurfacer

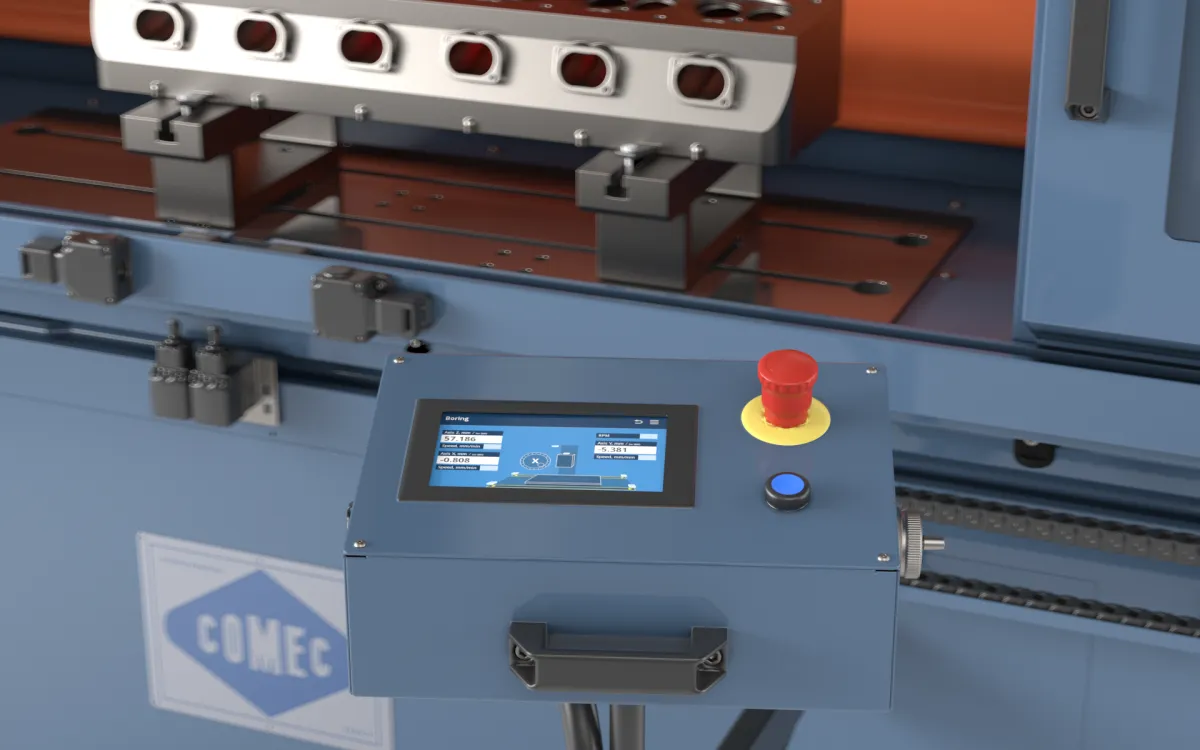

The RP1400 CNC is a resurfacing machine for cylinder heads and engine blocks of cars and trucks, as well as for all flat surfaces requiring maximum accuracy of the contact surfaces. The construction technology combines highly innovative solutions, such as the brushless motor for the automatic and precise positioning of the milling cutter plate - that is controlled by the CNC - with tested technologies, like the linear guides and recirculating-ball feed screws. The axes and the rotation speed of the milling cutter are controlled by an inverter. It is possible to monitor the feed speed. The control panel is an industrial touch screen, equipped with a simple and intuitive programme. The RP1400 CNC can be supplied with a milling cutter plate with tool-holder of CBN-PCD with a diameter of 405mm to resurface cast iron or aluminum surfaces. For heads with pre-chambers, you can use a special tool to ensure a perfect finishing.
The RP1400 CNC is defined as the “Smart Resurfacer”, thanks to its laser sensor that scans the cylinder-head surfaces, thus recording their profile and automating milling operations.

Images may show the product equipped with optional accessories
Fill in all fields to request information on this product.


Standard equipment
  • Table and head feed with recirculating-ball screw
  • Ø 405 mm milling plate with CBN insert
  • Touch screen CNC control panel
  • Laser sensor for scanning workpiece
  • Surface profile graph
  • Fully automatic cycle
  • Database with preloaded working cycles and possibility to customise them
  • Estimated cycle time
  • Safety guard with sliding doors
  • PV0160 Pair of parallel supports
  • PV0021 Large clamps (2 pcs.)
  • PV0022 Small clamps (4 pcs.)
  • Lubricant for slides
  • Wrench set
  • Instruction manual
Specifications
Table travel
1410 mm
Max working length
1195 mm
Max working width
405 mm
Min - Max working height
170÷690 mm
Useful table surface
1100x335 mm
Milling cutter diameter
405 mm (16”)
Spindle rotation speed
300÷1200 RPM
Variable table feed speed
0÷1500 mm/min
Spindle motor
2,2 kW
Table motor
0.75 kW
Feed torque motor
1.27 Nm
Dimensions (LxWxH)
2500x1000x1900 mm
Weight
1410 kg
Accessories and spare parts
PVA015
Adjustable universal fixture wit parallels
PV0007
PV0007 Pair of parallel supports  H=49mm
PV0160
PV0160 Pair of parallel supports
UT1320
3/8” CBN/PCD insert tool holder

CBN insert Comec
UT1355
1/2” CBN Insert for cast iron
UT1356
1/2” PCD Insert for aluminium
UT1390
ALP insert tool holder for UT1392
UT1392
ALP insert for aluminum with prechambers
UT1330
1/2”CBN/PCD insert tool holder
UT1345
3/8” CBN Insert for cast iron
UT1346
3/8” PCD Insert for aluminium
GL0400
Guide line laser sensor
