RP1000 CNC
CNC Head and block resurfacer
The RP 1000 CNC is a resurfacing machine for cylinder heads and engine blocks of cars and trucks as well as for all flat surfaces which require a maximum accuracy of the contact surfaces.
Fill in all fields to request information on this product.


Standard equipment
  • Ball screw drive feed of table and head complete of speed adjuster
  • Ø 355 mm milling plate with CBN insert

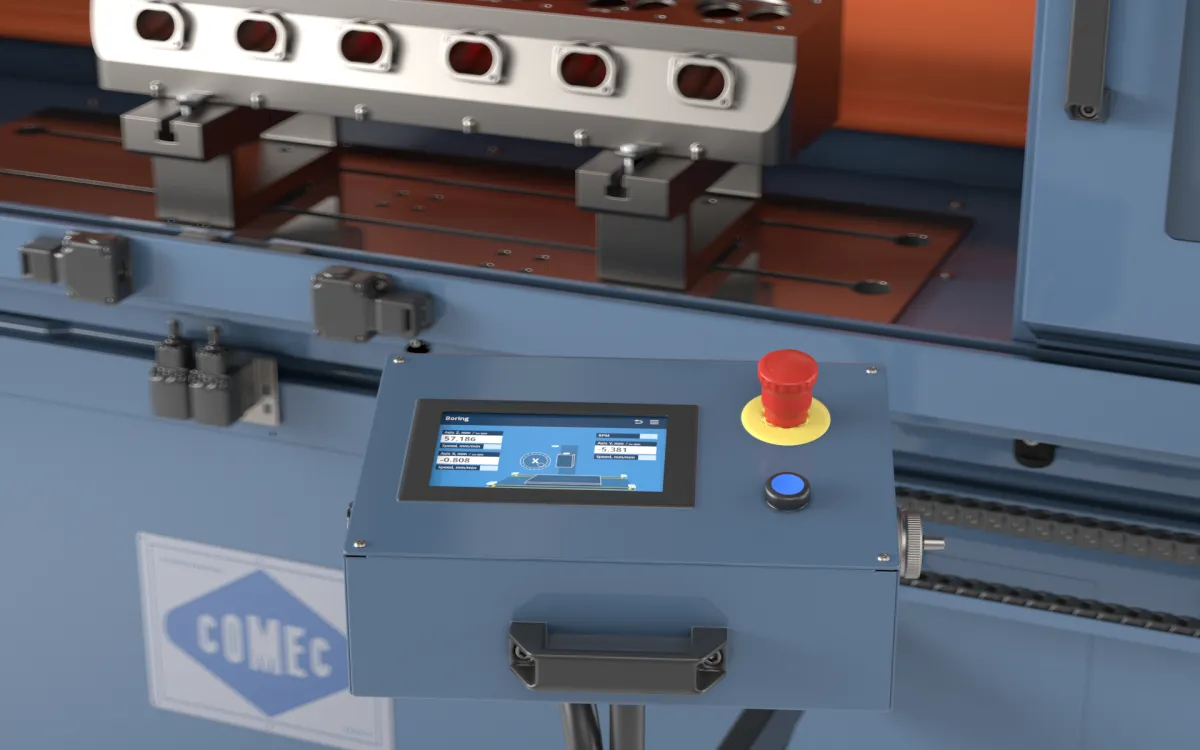

  • Touch screen CNC control panel
  • Laser sensor for scanning workpiece
  • Surface profile graph
  • Fully automatic cycle
  • Database with preloaded working cycles and possibility to personalize them
  • Estimated cycle time
  • Safety guard with sliding doors
  • Pair of parallel supports
  • Large clamps (2 pcs.)
  • Small clamps (4 pcs.)
  • Oil for slides
  • Wrench set
  • Instruction manual
Specifications
Table travel
1000 mm
Max working length
820 mm
Max working width
355 mm
Min - Max working height
150÷545 mm
Useful table surface
920x210 mm
Milling plate diameter
355 mm
Spindle rotation speed
50÷1500 mm/min
Variable table feed speed
0÷1500 mm/min
Spindle motor
2,2 kW
Table motor
0.75 kW
Feed torque motor
1.27 Nm
Dimensions (LxWxH)
1680x1140x1850 mm
Weight
1015 Kg
Accessories and spare parts
PVA015
Adjustable universal fixture wit parallels
UT1320
3/8” CBN/PCD insert tool holder

CBN insert Comec
UT1355
1/2” CBN Insert for cast iron
UT1356
1/2” PCD Insert for aluminium
UT1390
ALP insert tool holder for UT1392
UT1392
ALP insert for aluminum with prechambers
UT1330
1/2”CBN/PCD insert tool holder
